Yu-xiang® rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements......

Send Inquiry

Product Description

Yu-xiang® rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded  to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements of industrial plant and equipment.

These include:
Accommodating for pressure loads.
Neutral axial, lateral and angular stress.
Reducing noise.
Isolating sources of vibration.
Compensating for misalignment at plant start up.
Prolonging the life of motive equipment.
They are used in all systems transporting fluids, slurries or gases under pressure, at ambient pressure or under vacuum over a wide range of temperatures.

Application areas are:
Air conditioning, heating and ventilating systems in industrial buildings, hospitals, hotels and on board ships.
Central and ancillary power generating stations in industrial buildings, factories, ships and off-shore.
Sewage disposal and water treatment plant, pumps, etc.
Process piping in pulp and paper manufacture.

Flanged DIN/PN, ANSI/ASA, British BS10, SAE 3000, JIS.
EPDM, Nitrile/NBR/Buna-N/Perbunan, Hypalon/CSM, Chloro-Butyl/IIR, Natural Rubber, Neoprene/Chloroprene, SBR/Buna-S, Gum Rubber,HNBR, ECO/Epichlorohydrin.
PTFE Lined or Viton Expansion Joints for Chemicals & Solvents.
Hump Hoses & Flexible Pump Connectors,Steel Mesh or Aramid Reinforced.

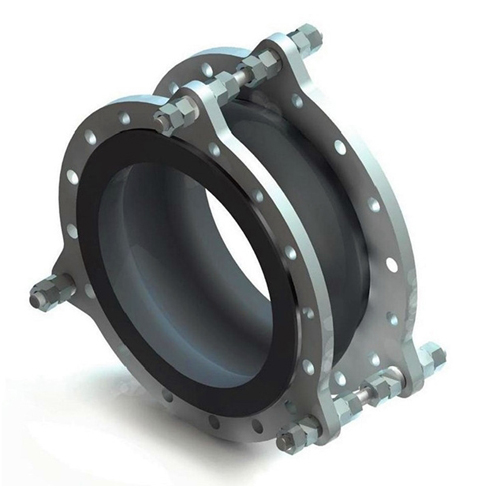

Yu-xiang®Spherical Molded Expansion Joints are designed for piping systems to absorb pipe movements, relieve stress, reduce system noise/vibration, compensate for misalignment/offset and to protect rotating mechanical equipment against start-up surge forces. The molded single sphere and twin sphere designed bellows are inherently stronger than the conventional hand-built style spool arch type. Internal pressure within a “sphere” is exerted in all directions, distributing forces evenly over a larger area. The spherical design “flowing arch” reduces turbulence and sediment buildup.


NominalPipe
SizeJointI.D.
Lenght
(mm)
Flange
thickness
(mm)
Bolt
No.
Bolt hole
diameter
(mm)
Bolt hole
circle
diameter
(mm)
Axial displacement
(mm)
Lateral
disp
  lacement
(mm)
Deflection
angle
(a1 +a2 )
(mm) (Inch) Stretching  Compression
32 1.25 95 16 4 18 100 6 9 9 15°
40 1.5 95 18 4 18 110 6 10 9 15°
50 2 105 18 4 18 125 7 10 10 15°
65 2.5 115 20 4 18 145 7 13 11 15°
80 3 135 20 4 18 160 8 15 12 15°
100 4 150 22 8 18 180 10 19 13 15°
125 5 165 24 8 18 210 12 19 13 15°
150 6 180 24 8 23 240 12 20 14 15°
200 8 210 24 8 23 295 16 25 22 20°
250 10 230 26 12 23 350 16 25 22 24°
300 12 245 28 12 23 400 16 25 22 24°
350 14 255 28 16 23 460 16 25 22 24°
400 16 255 30 16 25 515 16 25 22 24°
450 18 255 30 20 25 565 16 25 22 24°
500 20 255 32 20 25 620 6 25 22 24°
600 24 260 36 20 30 725 6 25 22 24°
700 28 260 36 24 30 840 16 25 22 24°
800 32 260 38 24 34 950 16 25 22 24°
900 36 260 42 28 34 1050 6 25 22 24°
1000 40 260 44 28 34 1160 18 26 24 24°
1100 44 300 44       18 26 24 24°
1200 48 300 48 32 41 1380 18 26 24 20°
1300 52 300 48       20 26 24 20°
1400 56 350 54 36 34 1560 20 28 26 20°
1600 64 350 62 40 34 1760 25 35 30 20°
1800 72 350 66 44 41 1970 25 35 30 20°
2000 80 420 72 48 48 2180 25 35 30 20°
2200 88 420 54 52 48 2390 25 35 30 20°
2400 96 420 60 56 48 2600 25 35 30 20°
2600 104 450 62 60 54 2810 25 35 30 20°
2800 112 450 64 64 54 3020 25 35 30 20°
3000 120 450 68 68 54 3220 25 35 30 20°
