Product Description



Get your big pipes and small pipes together, and reduce noise and vibration at the same time.

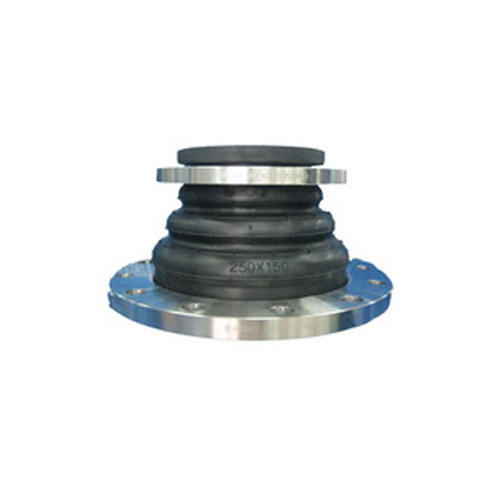

Also called a tapered expansion joint, the Metraflex Concentric Rubber Reducer connects unequal size pipes that share a common centerline. These joints eliminate the need for metallic reducers and at the same time provide sound and vibration isolation and expansion compensation.

A high strength synthetic fabric is used to reinforce the body. Flanges are drilled to standard ANSI dimensions and all joints are provided with metal retaining rings.


NominalPipe
SizeJointI.D.
Lenght
(mm)
Axial displacement
(mm)
Lateral
(mm)
Deflection
angle
(a1 +a2 )
Stretching  Compression
80×50 180 20 30 45 35°
100×80 180 20 30 45 35°
150×80 190 20 30 45 35°
150×100 200 22 30 45 35°
200×100 200 22 30 45 35°
200×150 200 22 30 40 35°
250×200 220 25 35 40 30°
300×200 220 25 35 40 30°
300×250 220 25 35 40 30°
350×200 220 25 35 40 30°
350×300 220 25 38 35 30°
400×350 220 25 38 35 30°
500×400 230 28 38 35 26°
600×400 240 28 38 35 26°
600×500 240 28 38 35 26°
