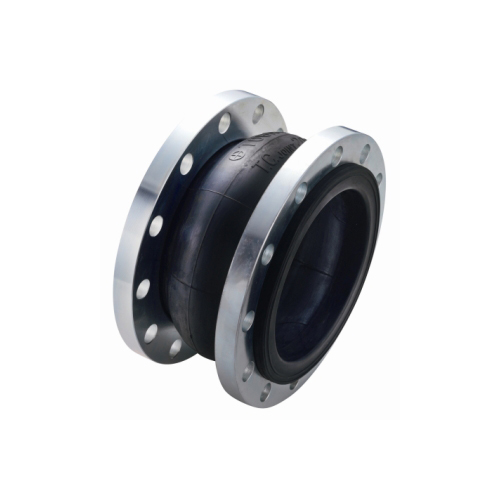

The Yu-xiang® pump connector and expansion joint protects your pumps and reduces noise and vibration.
A durable joint for piping systems reaching temperatures up to 250°F (121°C), the Yu-xiang Sphere™ joint differs from standard EPDM expansion joints by integrating Yu-xiang® cording and peroxide-cured EPDM. It is perfect for high-temp applications requiring modest pipe movement/expansion at higher temperatures.
The rugged, long-lasting material and construction will provide years of trouble-free operation at high temperature.An anchor wire, fully-wrapped with Yu-xiang® corded material, ensures a positive seal between the body and the floating flange.
The Yu-xiang® Style rubber expansion joints are furnished complete with plated carbon steel flanges for corrosion protection. Q235 other 304 or 316 stainless steel flanges are available upon request as well as ANSI 150/250/300 lb., BS-10, DIN PN10 & PN16 and JIS-10K drilling.
Yu-xiang® reinforced, peroxide-cured EPDM rubber greatly enhances tolerance to high temperatures.Anchor wire wrapped with Yu-xiang® corded material ensures a positive seal between the body and the floating flange.Reduces noise and vibration.Isolates and protects the pump.Available in single and double sphere styles.
|
NominalPipe SizeJointI.D. |
Lenght (mm) |
Flange thickness (mm) |
Bolt No. |
Bolt hole diameter (mm) |
Bolt hole circle diameter (mm) |
Axial displacement (mm) |
Lateral disp lacement (mm) |
Deflection angle (a1 +a2 ) |
||
| (mm) | (Inch) | Stretching | Compression | |||||||
| 32 | 1.25 | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 | 15° |
| 40 | 1.5 | 95 | 18 | 4 | 18 | 110 | 6 | 10 | 9 | 15° |
| 50 | 2 | 105 | 18 | 4 | 18 | 125 | 7 | 10 | 10 | 15° |
| 65 | 2.5 | 115 | 20 | 4 | 18 | 145 | 7 | 13 | 11 | 15° |
| 80 | 3 | 135 | 20 | 4 | 18 | 160 | 8 | 15 | 12 | 15° |
| 100 | 4 | 150 | 22 | 8 | 18 | 180 | 10 | 19 | 13 | 15° |
| 125 | 5 | 165 | 24 | 8 | 18 | 210 | 12 | 19 | 13 | 15° |
| 150 | 6 | 180 | 24 | 8 | 23 | 240 | 12 | 20 | 14 | 15° |
| 200 | 8 | 210 | 24 | 8 | 23 | 295 | 16 | 25 | 22 | 20° |
| 250 | 10 | 230 | 26 | 12 | 23 | 350 | 16 | 25 | 22 | 24° |
| 300 | 12 | 245 | 28 | 12 | 23 | 400 | 16 | 25 | 22 | 24° |
| 350 | 14 | 255 | 28 | 16 | 23 | 460 | 16 | 25 | 22 | 24° |
| 400 | 16 | 255 | 30 | 16 | 25 | 515 | 16 | 25 | 22 | 24° |
| 450 | 18 | 255 | 30 | 20 | 25 | 565 | 16 | 25 | 22 | 24° |
| 500 | 20 | 255 | 32 | 20 | 25 | 620 | 6 | 25 | 22 | 24° |
| 600 | 24 | 260 | 36 | 20 | 30 | 725 | 6 | 25 | 22 | 24° |
| 700 | 28 | 260 | 36 | 24 | 30 | 840 | 16 | 25 | 22 | 24° |
| 800 | 32 | 260 | 38 | 24 | 34 | 950 | 16 | 25 | 22 | 24° |
| 900 | 36 | 260 | 42 | 28 | 34 | 1050 | 6 | 25 | 22 | 24° |
| 1000 | 40 | 260 | 44 | 28 | 34 | 1160 | 18 | 26 | 24 | 24° |
| 1100 | 44 | 300 | 44 | 18 | 26 | 24 | 24° | |||
| 1200 | 48 | 300 | 48 | 32 | 41 | 1380 | 18 | 26 | 24 | 20° |
| 1300 | 52 | 300 | 48 | 20 | 26 | 24 | 20° | |||
| 1400 | 56 | 350 | 54 | 36 | 34 | 1560 | 20 | 28 | 26 | 20° |
| 1600 | 64 | 350 | 62 | 40 | 34 | 1760 | 25 | 35 | 30 | 20° |
| 1800 | 72 | 350 | 66 | 44 | 41 | 1970 | 25 | 35 | 30 | 20° |
| 2000 | 80 | 420 | 72 | 48 | 48 | 2180 | 25 | 35 | 30 | 20° |
| 2200 | 88 | 420 | 54 | 52 | 48 | 2390 | 25 | 35 | 30 | 20° |
| 2400 | 96 | 420 | 60 | 56 | 48 | 2600 | 25 | 35 | 30 | 20° |
| 2600 | 104 | 450 | 62 | 60 | 54 | 2810 | 25 | 35 | 30 | 20° |
| 2800 | 112 | 450 | 64 | 64 | 54 | 3020 | 25 | 35 | 30 | 20° |
| 3000 | 120 | 450 | 68 | 68 | 54 | 3220 | 25 | 35 | 30 | 20° |
