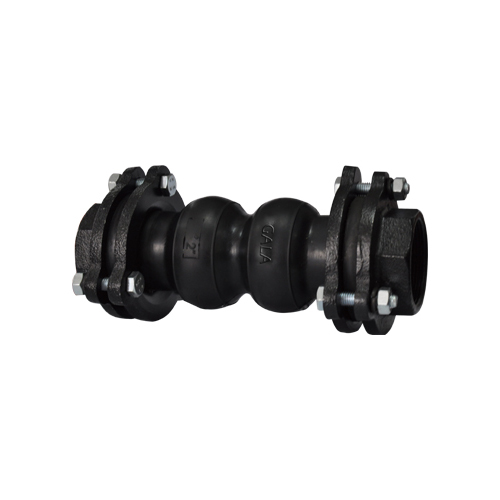

Yu-xiang® screwed type twin-sphere rubber joint with flanges.
This double sphere Yu-xiang® rubber joint allows increased compression, elongation and angular movement. The unique double sphere design improves noise and vibration isolation and dampens hydraulic surge and shock. Refer to the Product Data Sheets for more information.
Key Benefits:
Compensate for Axial and lateral movement due to thermal changes Isolate noise and vibration from piping system. Complete union assembly provided for ease of installation.
No gasket needed for sealing area.
| Dimension and Allowable movements | ||||||
|
Model No.
|
Pipe Size
|
Length (L)
|
Allowable Movements*
|
|||
|
T.M.
|
A.E.
|
A.C.
|
A.M.
|
|||
| YX12 |
1/2"
|
7"
|
5/8"
|
3/8"
|
5/8"
|
20°
|
| YX34 |
3/4"
|
7"
|
5/8"
|
3/8"
|
5/8"
|
20°
|
| YXU1 |
1"
|
7"
|
5/8"
|
3/8"
|
5/8"
|
20°
|
| YX114 |
1-1/4 "
|
9-5/8"
|
3/4"
|
3/8"
|
3/4"
|
30°
|
| YX112 |
1-1/2"
|
9-5/8"
|
3/4"
|
3/8"
|
3/4"
|
30°
|
| YX2 |
2"
|
10"
|
3/4"
|
3/8"
|
3/4"
|
30°
|
