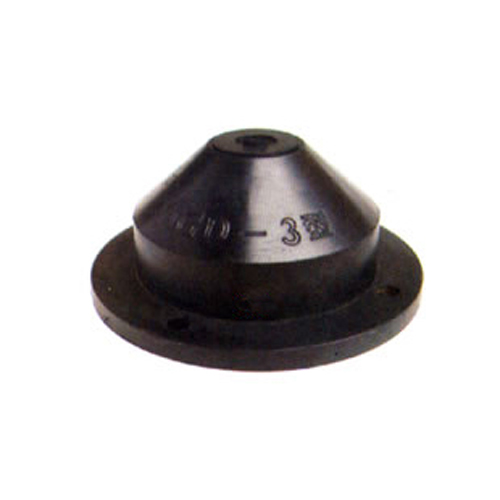

Rubber Cutting Vibration Isolator

Rubber Cutting Vibration Isolator comprised of internal and external steel sleeves and synthetic rubber,it has larger distortion range and lower natural frequency. The range of working temperature: -15℃～+60℃ Damping ratio: C/Cc≥0.07.Application:Used in water pump, compressor, the ventilator, gen......

Product Description

Rubber Cutting Vibration Isolator comprised of internal and external steel sleeves and synthetic rubber,it has larger distortion range and lower natural frequency. The range of working temperature: -15℃～+60℃ Damping ratio: C/Cc≥0.07.

Application:
Used in water pump, compressor, the ventilator, generators, the refrigerator, precision instrument, the central air conditioning etc power machinery equipment for vibration isolation and noise reduction.

Type JGD	Exteral dimension					Loading rate Min-Max (kg)	Stiffness (Kg/cm)	Distortion (mm)	Natural frequency (Hz)	Loading (kg)
Type JGD	M	D	DI	H	do	Loading rate Min-Max (kg)	Stiffness (Kg/cm)	Distortion (mm)	Natural frequency (Hz)	Loading (kg)
1-1 1-2	M10 M10	100 100	80 80	43 43	85 85	5～15 10～30	20 36	2～8	8～14	10 20
2-1 2-2	M12 M12	150 150	130 130	65 65	85 85	20～60 40～120	60 90	4～12	7～12	40 80
3-1 3-2	M16 M16	200 200	170 170	87 87	125 125	80～240 160～480	120 200	5～16	6～11	160 320
4-1 4-2	M20 M20	290 290	260 260	133 133	125 125	320～960 640～1920	300 650	8～24	5～9	640
