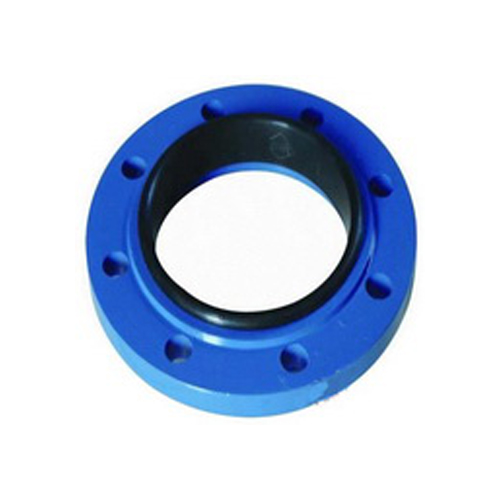

single disk connector-DP

single disk connector-DP

The product is suitable for the pipeline construction , such as water supply and drainage, petroleum, natural gas, construction, electrical power, pharmaceutical, papermaking, chemical industry etc.Application:Can be used in cast iron pipe, plastic pipes, nodular cast iron pipe, steel tube, glass ......

Send Inquiry

Product Description

The product is suitable for the pipeline construction , such as water supply and drainage, petroleum, natural gas, construction, electrical power,
pharmaceutical,  papermaking, chemical industry  etc.
Application:
Can be used in cast iron pipe, plastic pipes, nodular cast iron pipe, steel tube, glass steel tube.


Model XHS-
5
XHS-
10
XHS-
20
XHS-
30
XHS-
40
XHS-
60
XHS-
80
XHS-
100
XHS-
150
XHS-
200
XHS-
250
XHS-
320
XHS-
500
XHS-
700
Technical

data
Load
range (N)
30-
80
80-
170
130-
260
190-
390
250-
530
400-
800
550-
1050
750-
1500
1000-
2000
1300-
2650
1700-
3100
2310-
4160
3000-
6800
5500-
10000
Axial
static
stiffness
3.2 N/mm 7.5 N/mm 11 N/mm 11.5 N/mm 14 N/mm 21 N/mm 32 N/mm 40 N/mm 45 N/mm 58 N/mm 56 N/mm 77 N/mm 200 N/mm 535 N/mm
Vibration
frequency (Hz)
3.0-5.0 3.0-4.8 3.0-4.5 2.5-4.0 2.6-3.7 2.6-3.6 2.7-3.8 2.6-3.6 2.3-3.3 2.3-3.3 2.9-2.1 2.9-2.1 4-2.6 4.5-3.4
Deformation (mm) 9.5 10.5 12 16.5 18 19 17 19 23 23 30 30 15 12
Deformation Max(mm) 25 23 23 34 38 38 33 38 45 46 55 54 35 20
Overall
size
A 50 50 50 70 95 95 100 100 115 115 115 116 95 95
B 50 50 50 100 105 105 110 110 130 130 130 130 105 105
C 50 50 50 70 80 80 90 90 100 100 100 100 85 85
