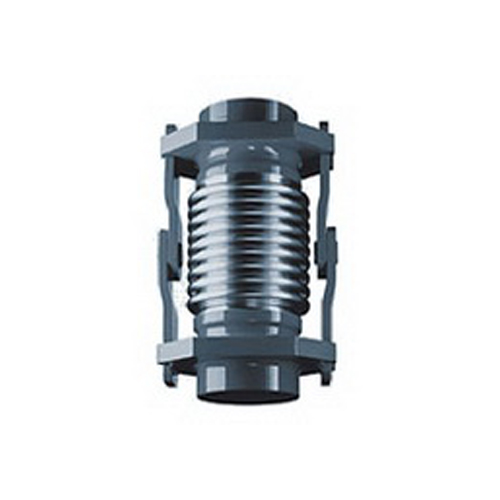

Hinged Corrugated Compensator

Hinged Corrugated Compensator

Hinged corrugated compensator/hinged bellows expansion joints have a single membrane with the overall length restrained by a hinged hardware assembly designed to accommodate the full pressure thrust and any additional loadings from external source.A hinged expansion joint allows angular movement in......

Send Inquiry

Product Description

Hinged corrugated compensator/hinged bellows expansion joints  have a single membrane with the overall length restrained by a hinged hardware assembly designed to accommodate the full pressure thrust and any additional loadings from external source.

A hinged expansion joint allows angular movement in a single plane. A gimbal assembly, which is basically a hinge arrangement jointed together by a floating “gimbal” ring, allows for angular rotation in all planes.

A piping system consisting of two gimbals and a hinge can accommodate very large movements with very low reaction loads on the adjacent equipment. This is a very attractive application for large diameter hot systems even if the movements are not in a single plane.
